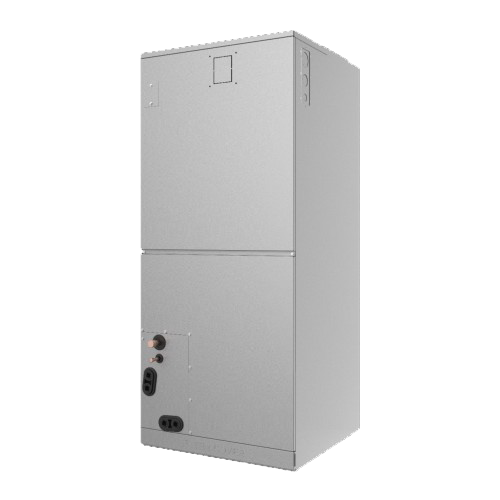

Excel Series Air Handler Unit
45MUAA
Can replace a traditional ducted gas furnace and be connected to select ductless systems.
Purpose: Heating & Cooling
Overview
Easily connect select ductless systems with traditional ducted systems or replace outdated gas furnaces while still enjoying the benefits that ductless systems provide. Additionally, you can install the unit in four different positions for maximum flexibility within any space.
California residents please see Proposition 65
Product Features
- Modes: Cool, Heat, Dry, Fan, Auto
- Multi Poise Installation (Up Flow, Down Flow, Horizontal Right, Horizontal Left)
- Sizes 18k, 24k, 30k, 36k, 48k and 60k
- Total system static pressure up to 0.8 in. W.C.
- Less than 2% air leakage
- Extremely quiet indoor operation
- Built-in third-party thermostat compatibility
- Anti-corrosive fin coating
- Available in 115/208/230V
- Built-in 24V interface
- Conventional line set
- Refrigerant leak detection system
- Extreme heating operation in as low as -22° F (-30° C) based on outdoor unit pairing
- Optional electric heat packages available (5 to 25 KW)
- Compatible with lower global warming potential R-454B refrigerant
- 10-year parts limited warranty upon registration.1
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
