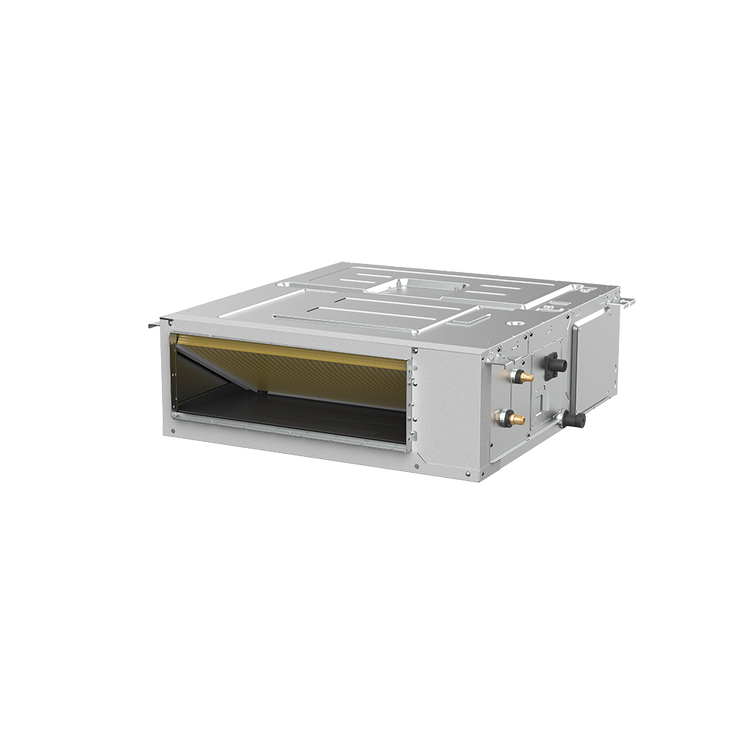

Excel Series Ducted Indoor Unit
45MBDA
Quiet ducted indoor unit that is compatible with single-zone and multi-zone Excel systems.
Purpose: Heating & Cooling
Overview
The high static ducted indoor unit permits creative solutions to design problems such as add-ons to current spaces or areas where no ductwork is available.
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Ducted Indoor
Zones
Single-zone or multi-zone compatible
Cooling Energy Savings
Varies, based on outdoor unit
Cooling Efficiency
Dependent upon outdoor unit pairing
Heating Energy Savings
Varies, based on outdoor unit
Heating Efficiency
Dependent upon outdoor unit pairing
Indoor Sound Performance
Quiet
Sound Level (As Low As)
22 decibels
Sizes
0.5 - 1.5 ton (low static); 0.75 - 4.8 ton (high static)
Voltage
208/230V
Application
Residential
California residents please see Proposition 65
Product Features
- Select sizes are ENERGY STAR® certified based on outdoor unit pairing
- Modes: Cool, Heat, Dry, Fan, Auto
- Vertical (sizes 0.5 - 4.8 ton) or horizontal (all sizes) installation
- Up to 0.8 in WG
- Rear or bottom return
- Constant CFM operation
- Built-in condensate lift pump (high staic unit)
- Follow Me (senses temperature at handheld remote)
- Heating Setback (46° F Heating Mode)
- Aluminum Golden Hydrophilic pre-coated fins
- Available in 208/230V
- Anti-corrosive fin coating
- Compatible with lower global warming potential R-454B refrigerant
- 10-year parts limited warranty upon timely registration. 1
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
