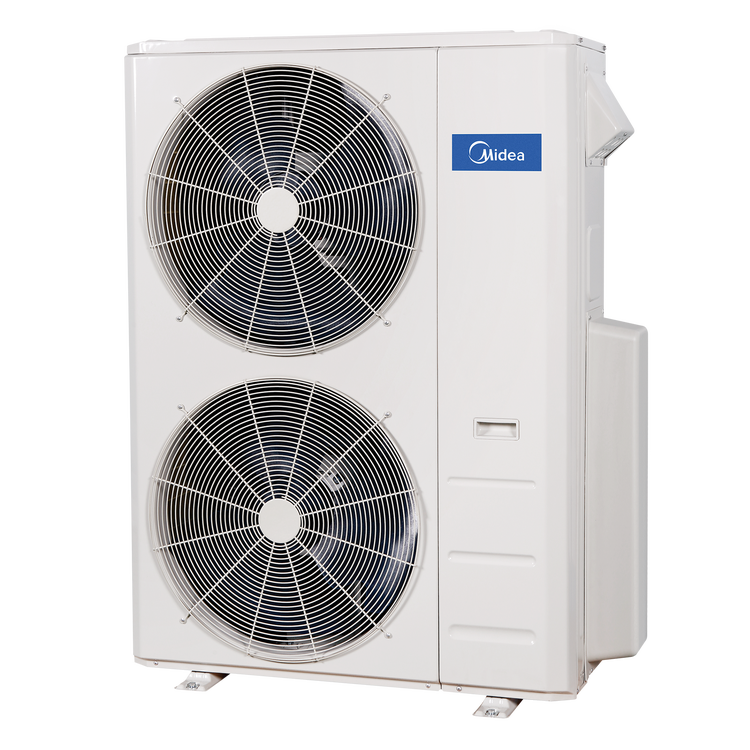

Elevate Series Light Commercial Heat Pump
37MBHA
Single-zone heat pump system with up to 21.3 SEER2 and 11.1 HSPF2 for premium energy savings.
Purpose: Heating & Cooling
Overview
The stepless frequency adjustment offers precise control of the system, while maintaining stable and constant room temperature while reducing sound level and saving energy.
View Technical Specification
Reference: technicalspecification
View Product Literature
Reference: productliterature
Technical Specification
Purpose
Heating & Cooling
Type
Heat Pump
Zones
Single-Zone
Overall Efficiency
All systems are ENERGY STAR® certified
Cooling Energy Savings
Premium
Cooling Efficiency
Up to 21.3 SEER2
Heating Energy Savings
Premium
Heating Efficiency
Up to 11.1 HSPF2
Outdoor Sound Performance
Extremely Quiet
Sound Level (As Low As)
62.5 decibels
Cooling Capacity
100% at -22° F (-30° C) without additional kit
Cooling Operating Range
-22° ~ 122°F (-30° ~ 50° C)
Heating Capacity
100% at 0° F (-17° C), Up to 75% at -22° F (-30° C)
Heating Operating Range
-22° F up to 75° F (-30° C up to 24° C)
Sizes
3 – 4.8 tons
Voltage
208/230V
Application
Residential
Proposition 65 Product Warnings
343824-2 Lead and Lead Compounds
California residents please see Proposition 65
Product Features
- Select sizes are ENERGY STAR® certified
- Up to 21.3 SEER2 and 12 EER2 cooling efficiency
- Up to 11.1 HSPF2 heating efficiency
- Built-in base pan heater
- Auto-restart function
- Refrigerant leakage detection
- Quiet outdoor operation, as low as 62.5 dB(A)
- Aluminum Golden Hydrophilic pre-coated fins
- Piping length: Up to 246 ft. (75 m.)
- Available in 208/230V
- Compatible with lower global warming potential R-454B refrigerant
- Compatible units: Air Handler, 1-Way Cassette, 4-Way Cassette, Air Handler, Ceiling and Floor Console, High Static Slim Duct, Floor Console
- 10-year parts limited warranty upon timely registration. 1
1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
