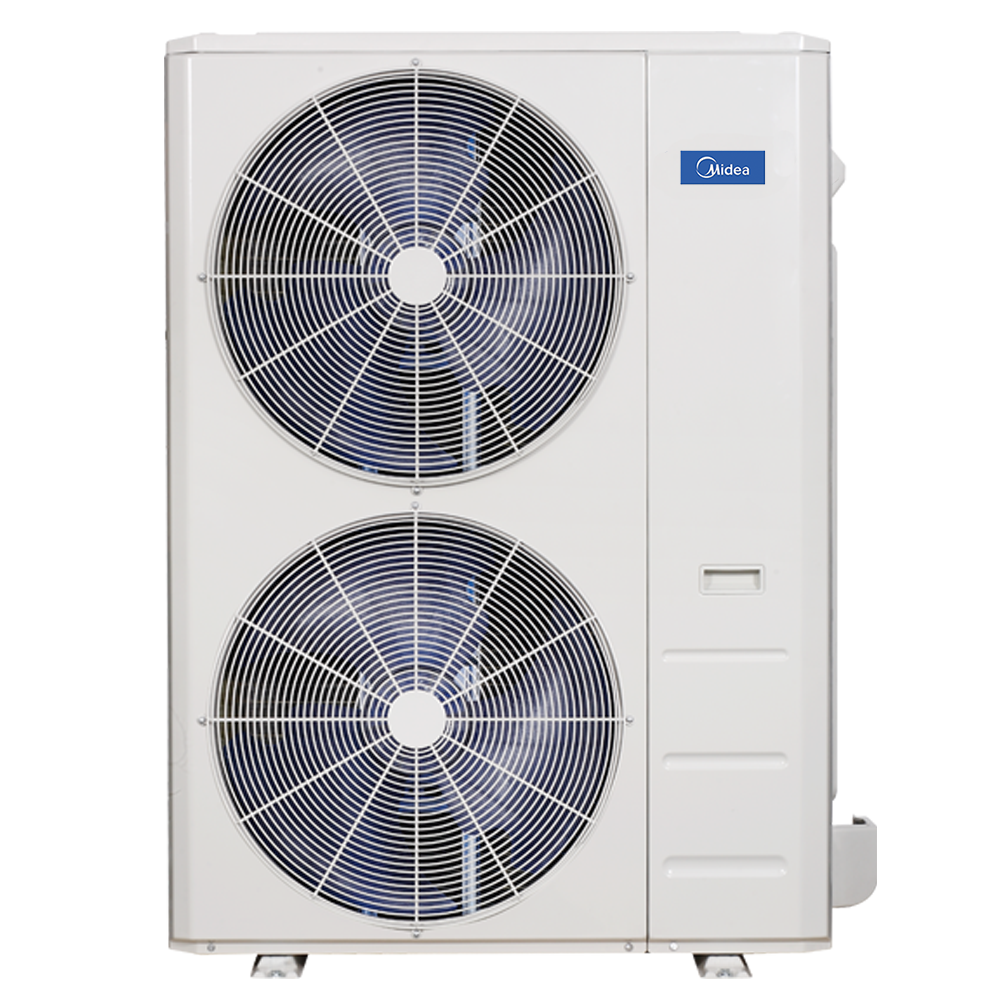

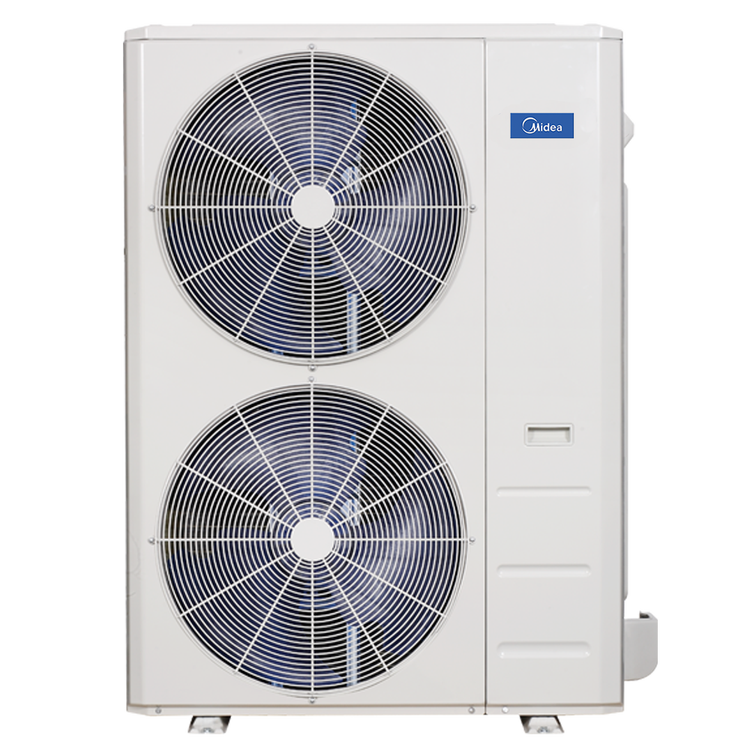

Excel Series Single-Zone Light Commercial Heat Pump

37MBRA

Single-zone heat pump compatible with Excel Series indoor units.

Purpose: Heating & Cooling

Overview

Can be matched with Excel Series indoor units for reliable heating and cooling performance. This versatile heat pump can operate in a wide range of outdoor temperatures, providing year-round comfort.

View Technical Specification

Reference: technicalspecification

View Product Literature

Reference: productliterature

Technical Specification

Purpose

Heating & Cooling

Type

Heat Pump

Zones

Single-zone

Overall Efficiency

Select sizes ENERGY STAR® certified based on indoor unit pairing

Cooling Energy Savings

Premium

Cooling Efficiency

Up to 20 SEER2

Heating Energy Savings

Enhanced

Heating Efficiency

Up to 10.4 HSPF2

Outdoor Sound Performance

Quiet

Sound Level (As Low As)

62.5 decibels

Cooling Operating Range

-13° F up to 122° F (-25° C up to 50° C)

Heating Operating Range

-13° F up to 75° F (-25° C up to 24° C)

Sizes

3 – 4.8 tons

Voltage

208/230V

Application

Light Commercial

California residents please see Proposition 65

Product Features

Select sizes are ENERGY STAR ^® certified based on indoor unit pairing
Up to 20 SEER2 and 10.2 EER2 cooling efficiency
Up to 10.4 HSPF2 heating efficiency
Available in 208/230V
Built-in base pan heater
Piping length: Up to 246 ft (75m)
46° F heating mode (heating setback)
Quiet outdoor sound operation, as low as 62.5 decibels
Compatible with lower global warming potential R-454B refrigerant
10-year parts limited warranty upon registration ¹

Style

bg-color-dark-grey

¹To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
