Elevate Series Single-Zone Heat Pump


Single-zone heat pump system with up to 28.5 SEER2 and 18 HSPF2 for premium energy savings.

Product Line Elevate Series

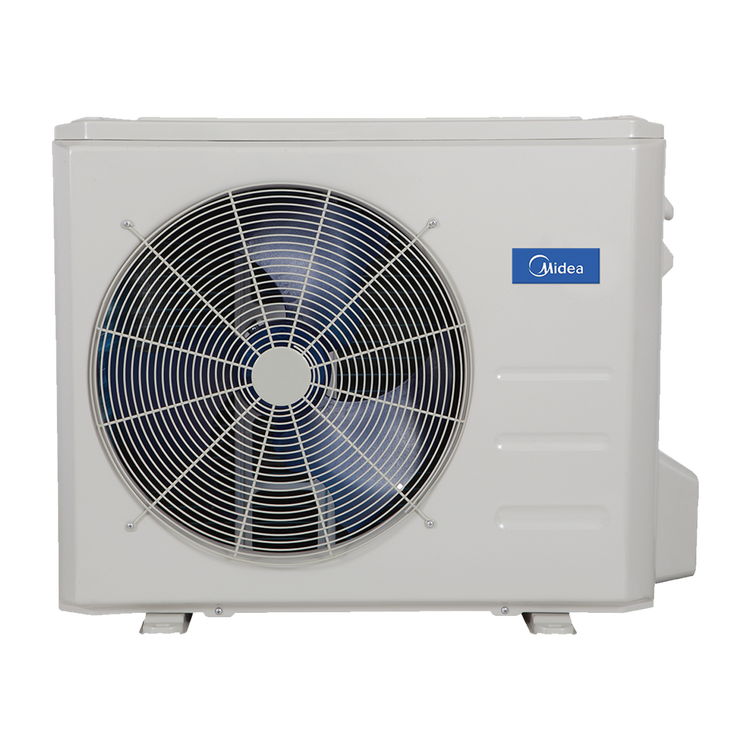

A versatile outdoor unit for precise temperature control. Extra low temperature heating for when it’s cold outside. The heat output for this system is up to 75% of rated capacity down to -22° F (-30° C), making this a primary heat source and eliminating the need for a backup heat source.

The stepless frequency adjustment offers precise control of the system, while maintaining stable and constant room temperature while reducing sound level and saving energy.

View Product Literature

California residents please see Proposition 65

Product Features

  • All systems are ENERGY STAR® certified
  • Built-in base pan heater
  • Auto-restart function
  • Refrigerant leakage detection
  • Extremely quiet outdoor operation, as low as 55.5 dB(A)
  • Aluminum Golden Hydrophilic pre-coated fins
  • Piping length 98 ft. (30 m.)
  • 100% Heating capacity at 0° F (-17° C)
  • 100% Cooling capacity at -22° F (-30° C) without additional kit
  • Up to 75% of Heating Capacity at -22° F (-30° C)
  • Cooling operating range -22° ~ 122°F (-30° ~ 50° C)
  • Heating operating range -22° ~ 86°F (-25° ~ 30° C)
  • Available in 208/230V
  • 10-year parts limited warranty upon timely registration.1

Works Well With

Extremely quiet indoor high wall unit that is compatible with single-zone Elevate systems and multi-zone Excel systems.

1To the original owner, when product is used in an owner-occupied residence, a 10-year parts limited warranty upon timely registration of your new equipment. Warranty period is 5 years if not registered within 90 days. Jurisdictions where warranty benefits cannot be conditioned on registration will automatically receive a 10-year parts limited warranty. See warranty certificate for complete details.
